What’s the Difference between Computer Vision, Image Processing and Machine Learning?



Computer vision, image processing, signal processing, machine learning – you’ve heard the terms but what’s the difference between them? Each of these fields is based on the input of an image or signal. They process the signal and then give us altered output in return. So what distinguishes these fields from each other?  The boundaries between these domains may seem obvious since their names already imply their goals and methodologies. However, these fields draw heavily from the methodologies of one another, which can make the boundaries between them blurry. In this article we’ll draw the distinction between the fields according to the type of input used, and more importantly, the methodologies and outputs that characterize each one.



Let’s start by defining the input used in each field. Many, if not all, inputs can be thought of as a type of a signal. We favor the engineering definition of a signal, that is, a signal is a sequence of discrete measurable observations obtained using a capturing device, be it a camera, a radar, ultrasound, a microphone, et cetera… The dimensionality of the input signal gives us the first distinction between the fields. Mono-channel sound waves can be thought of as a one-dimensional signal of amplitude over time, whereas a pictures are a two-dimensional signal, made up of rows and columns of pixels. Recording consecutive images over time produces video which can be thought of as a three-dimensional signal.

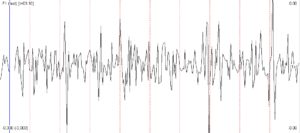

Head_movement_vestibulogram_signal

Head movement vestibulogram signal captured by low noise camera



Input of one form can sometimes be transformed to another. For example, ultrasound images are recorded using the reflection of sound waves from the object observed, and then transformed to a visual modality. X-ray can be considered similarly to ultrasound, only that radioactive absorption is transformed into an image. Magnetic Resonance Imaging (MRI), records the excitation of ions and transforms it into a visual image. In this sense, signal processing might be understood actually as image processing.



Let’s look at the x-ray as a prototypical example. Let’s assume we have acquired a single image from an x-ray machine. Image processing engineers (or software) would often have to improve the quality of the image before it passes to the physician’s display. Hence, the input is an image and the output is an image. Image processing is, as its name implies, all about the processing of images. Both the input and the output are images.  Methods frequently used in image processing are: filtering, noise removal, edge detection, color processing and so forth. Software packages dedicated to image processing are, for example, Photoshop and Gimp.



Find_edges

Edge detection in image processing software



In computer vision we wish to receive quantitative and qualitative information from visual data. Much like the process of visual reasoning of human vision; we can distinguish between objects, classify them, sort them according to their size, and so forth. Computer vision, like image processing, takes images as input. However, it returns another type of output, namely information on size, color, number, et cetera. Image processing methods are harnessed for achieving tasks of computer vision.



Extending beyond a single image, in computer vision we try to extract information from video. For example, we may want to count the number of cats passing by a certain point in the street as recorded by a video camera. Or, we may want to measure the distance run by a soccer player during the game and extract other statistics. Therefore, temporal information plays a major role in computer vision, much like it is with our own way of understanding the world.



But not all processes are understood to their fullest, which hinders our ability to construct a reliable and well-defined algorithm for our tasks. Machine learning methods then come to our rescue. Methodologies like Support Vector Machine (SVM) and Neural Networks are aimed at mimicking our way of reasoning without having full knowledge of how we do this. For example, a sonar machine placed to alert for intruders in oil drill facilities at sea needs to be able to detect a single diver in the vicinity of the facility. By sonar alone it is not possible to detect the difference between a big fish and a diver – more in-depth analysis is needed.



Fish or Diver?

Fish or Diver? Image is by OpenCago.info – Licensed under CC BY-SA 2.5.



Characterizing the difference between the motion of the diver compared to a fish by sonar would be a good start. Features related to this motion, such as frequency, speed and so on are fed into the Support Vector Machine or neural network classifier. With training, the classifier learns to distinguish a diver from a fish. After the training set is completed, the classifier is intended to repeat the same observation as the human expert will make in a new situation. Thus, machine learning is quite a general framework in terms of input and output. Like humans, it can receive any signal as an input and give almost any type of output.



The following table summarizes the input and output of each domain:



Domain Input Output
Image processing Image Image
Signal processing Signal Signal, quantitative information, e.g. Peak location,
Computer vision Image/video Image, quantitative/qualitative information, e.g. size, color, shape, classification, etc…
Machine learning Any feature signal, from e.g. image, video, sound, etc.. Signal, quantitative/qualitative information, image,…





This can also be presented in a Venn diagram:



Venn diagram cv

What do you think? Is defining the domains in terms of input the way to go? Talk about it with our experts, at the link below!

Consult R&D experts now

Share The Story

2 Comments

  1. Ambrose Underberg says:

    So, could anyone tell me what the differences between Computer Vision and Image Processing are?

    • Felicity says:

      Hi there,
      Thanks for your question!
      In computer vision the programmer produces algorithms for automatically performing tasks based on visual information as input. These tasks might be, for example, automatic counting objects of some sort in an image or a set of images, measuring their size/volume, distinguishing between different types and so forth.
      This is mainly what computer vision is about, granting the computer the ability to ‘see’ and ‘understand’ what it sees.
      Often times, before a reasonable deduction can be made from the data, the input set of images must be processed. Routine tasks are, for example: noise removal, image sharpening, illumination correction, and performing morphological operations. This is image processing.

      In image processing you get an image as input and provide processed image as output, whereas in computer vision you get an image (or video) as input and provide other quantitative data as an output (e.g geometrical information about the objects in question).

      Let us know if you have any further questions!
